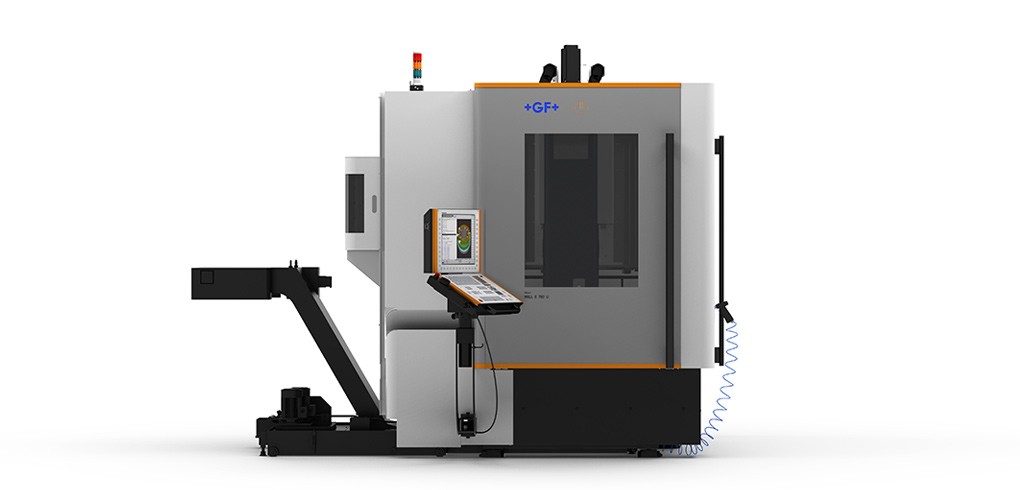

Main specifications

Travel X, Y, Z

500 x 450 x 400 mm

Swiveling axis tilting axis

-65 /+120 / nx360 °

Working Spindle (40% ED, S6)

12.000/20/88 - 20.000/36/120 rpm / kW / Nm

Feed rate / rapid traverse X, Y, Z

30 m / min

Feed rate / rapid traverse (swiveling, rotating)

17/28 - 32/112 rpm

Tool magazine

DT 30 / CT 60

Automation pallet size number   mm piece

UPC (320x320)/7 or Dynafix (350x350)/7

MTS or Delphine (400x400)/5 mm / piece

Automation - Max. load (incl. pallet)

300 - 300/200kg

Control unit - Heidenhain / Fanuc

iTNC 530 HSCI FS / 0i-MD
